How to Display 3D Symbols and Models in CesiumJS

/ Cesium, GIS
CesiumJS 3d Symbol-ManyaTechnologies

When building a geospatial application, one of the most common tasks is to display moving objects such as aircraft, ships, or vehicles on a 3D globe. In CesiumJS, you can visualize these tracks using either 2D billboards (icons) or 3D models (glTF/GLB).

This article will walk you through both approaches with working code snippets.

Displaying 2D Billboards

Billboards are simple icons or images placed at a geographic position. They are lightweight, fast to render, and suitable when you need to display hundreds or thousands of entities.

// Create a fighter jet billboard
const entity = viewer.entities.add({
  position: Cesium.Cartesian3.fromDegrees(77.6, 12.9, 1000), // lon, lat, alt
  billboard: {
    image: './images/fighter.png', // custom icon
    width: 32,
    height: 32,
    rotation: Cesium.Math.toRadians(90), // heading rotation
    verticalOrigin: Cesium.VerticalOrigin.CENTER,
    horizontalOrigin: Cesium.HorizontalOrigin.CENTER
  },
  label: {
    text: "Fighter-101",
    font: 'bold 14px sans-serif',
    fillColor: Cesium.Color.YELLOW,
    style: Cesium.LabelStyle.FILL_AND_OUTLINE,
    outlineColor: Cesium.Color.BLACK,
    outlineWidth: 2,
    verticalOrigin: Cesium.VerticalOrigin.TOP,
    pixelOffset: new Cesium.Cartesian2(0, -40),
    showBackground: true
  }
});

✅ When to use billboards

  • You need performance for large numbers of tracks.
  • You want to quickly show status using custom icons.
  • You don’t need full 3D realism.

Displaying 3D Models

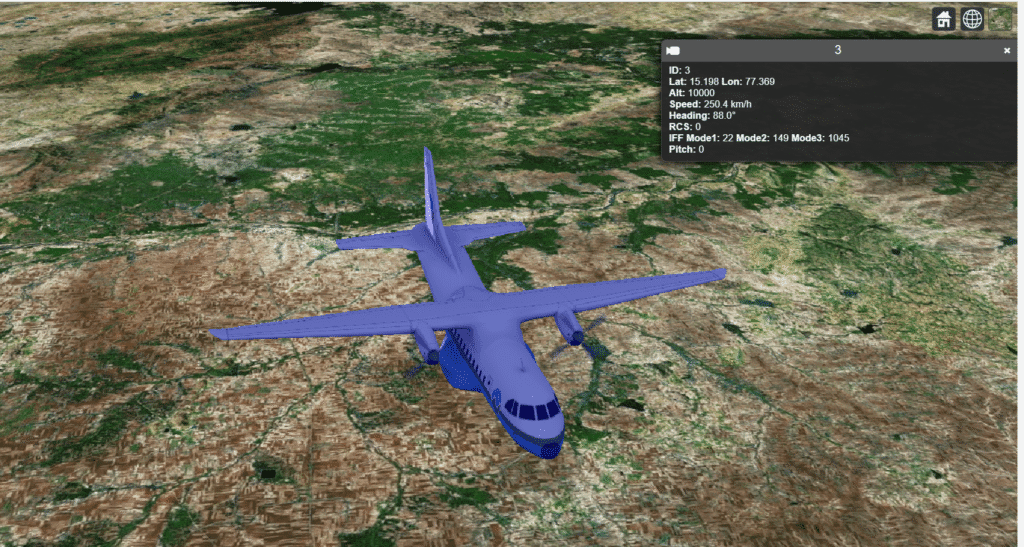

For realistic visualization, CesiumJS supports 3D models in glTF/GLB format. These can be oriented with heading, pitch, and roll to reflect the direction of movement.

// Create a 3D aircraft model
const position = Cesium.Cartesian3.fromDegrees(77.6, 12.9, 5000);

const orientation = Cesium.Transforms.headingPitchRollQuaternion(
  position,
  new Cesium.HeadingPitchRoll(
    Cesium.Math.toRadians(45), // heading in degrees
    0,                         // pitch
    0                          // roll
  )
);

const entity = viewer.entities.add({
  position: position,
  orientation: orientation,
  model: {
    uri: './models/Cesium_Air.glb', // 3D aircraft model
    scale: 500,
    minimumPixelSize: 64,
    color: Cesium.Color.BLUE,
    colorBlendMode: Cesium.ColorBlendMode.MIX,
    colorBlendAmount: 0.3,
    shadows: Cesium.ShadowMode.DISABLED
  }
});

✅ When to use 3D models

  • You want realism and richer visualization.
  • You need entities to match heading and orientation.
  • Track counts are moderate (dozens to hundreds).

Hybrid Approach (Best Practice)

A common optimization is to use billboards when zoomed out (for performance) and switch to 3D models when zoomed in (for detail).

viewer.scene.postRender.addEventListener(function() {
  viewer.entities.values.forEach(entity => {
    const cameraHeight = viewer.camera.positionCartographic.height;
    if (cameraHeight > 200000) {
      entity.billboard.show = true;
      if (entity.model) entity.model.show = false;
    } else {
      entity.billboard.show = false;
      if (entity.model) entity.model.show = true;
    }
  });
});

This ensures smooth performance at scale while giving users an immersive 3D experience at close zoom levels.

Adding Dynamic Heading

Moving tracks usually need a direction arrow or proper model orientation. This can be achieved using HeadingPitchRoll:

function getOrientation(lon, lat, alt, headingDeg) {
  const position = Cesium.Cartesian3.fromDegrees(lon, lat, alt);
  const hpr = new Cesium.HeadingPitchRoll(
    Cesium.Math.toRadians(headingDeg), 0, 0
  );
  return Cesium.Transforms.headingPitchRollQuaternion(position, hpr);
}

Call this function whenever you update your entity’s heading.

Conclusion

CesiumJS gives you powerful options for visualizing moving entities:

  • 2D Billboards for lightweight, high-performance tracking.
  • 3D Models for immersive, realistic representation.
  • Hybrid techniques to balance performance and detail.

By combining these approaches, you can build scalable, visually appealing 3D geospatial applications.
